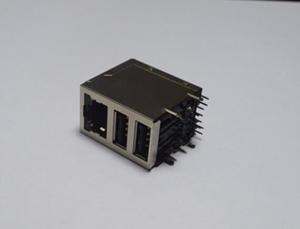

Customized 90 Degree Network 10 Pin RJ45 Modular Connector With Dual USB
Specifications
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WITH/WITHOUT LEDS |
| Latch |
UP/DOWN |
| Number of Ports |
SINGLE PORT WITH USB |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
10/100/1000/10G BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Material Specifications:
Insert:Plastic: Reinforced FR PA66-B30 UL94V-0.
Contact Area: Phosphor Bronze, Gold Plated, 6U~50U Optional.
PCB Terminal: Phosphor Bronze, Tail-Tin over Nickel
Housing: Reinforced FR PA66-B30 UL94V-0.
Metal Shell: Copper Alloy, Nickel Plated
Case: Phenolic, UL94V-0 Black.
Features and Benefits:
Single port (1X1) Tab-up RJ45 with internal magnetics.
RoHS-6 peak wave solder temperature rating 260 0C.
Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
Internal magnetics are 100% electrically tested for HI-POT and functionality.
Characteristics:
1) RJ45 Connector with integrated transformer/common mode choke
2) Available in SMD, THT and THT with USB
3) 350µH min. OCL with 8mA bias
4) Complies with IEEE 802.3
5) Extended temperature range -40°C to +85°C available
6) PoE/ PoE+
Usage:
1) Applies ToPrinted Circuit Board
2) Environmental ConditionsOffice / Premises
3) Operating Temperature (°C ) 0 ~ 70 /-40 ~ +85
Advantage:
We has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly ,100% test, 0 defect, short lead time are our best advantages
